Recently, heavy rainfall associated with tropical waves 8 and 9 caused severe floods and landslides across Venezuela. The Andean states of Mérida, Trujillo, and Táchira were among the most affected areas. Storms and floods impact power transmission and distribution systems in the country. This causes an increased power crisis in a country already facing systemic vulnerabilities in its energy infrastructure. Strong winds and lightning during storms can snap conductors, topple towers, or damage insulators. Floodwaters may also erode the foundations of pylons and poles, thereby causing structural instability and collapse. For instance, landslides in the Andean and central-western regions isolate transmission routes and cut off large areas from the national grid. Floods also pose severe risks to the electrical substations and distribution networks that deliver electricity to homes and businesses. Using plate rod anchors helps stabilize structures, including power grids, transmission towers, and flood barriers, during storms and floods.
Earth anchors embed deep into the ground and connect to the structures through cables and rods. The anchors resist uplift forces from high winds and lateral forces from floodwaters or soil erosion. Strong winds can destabilize power transmission towers or poles. Using the plate rod anchor prevents them from being uprooted by acting as a counterweight. The anchor holds the structure in place by transferring loads to deeper soil layers. Floods can wash away loose soil that weakens the foundation of grid infrastructure. Plate rod anchors extend deep enough to maintain the grid even if the surface soil is eroded. Some flood defense systems can use plate anchors to hold down sandbags, barriers, or geotextile tubes to prevent them from shifting underwater pressure.

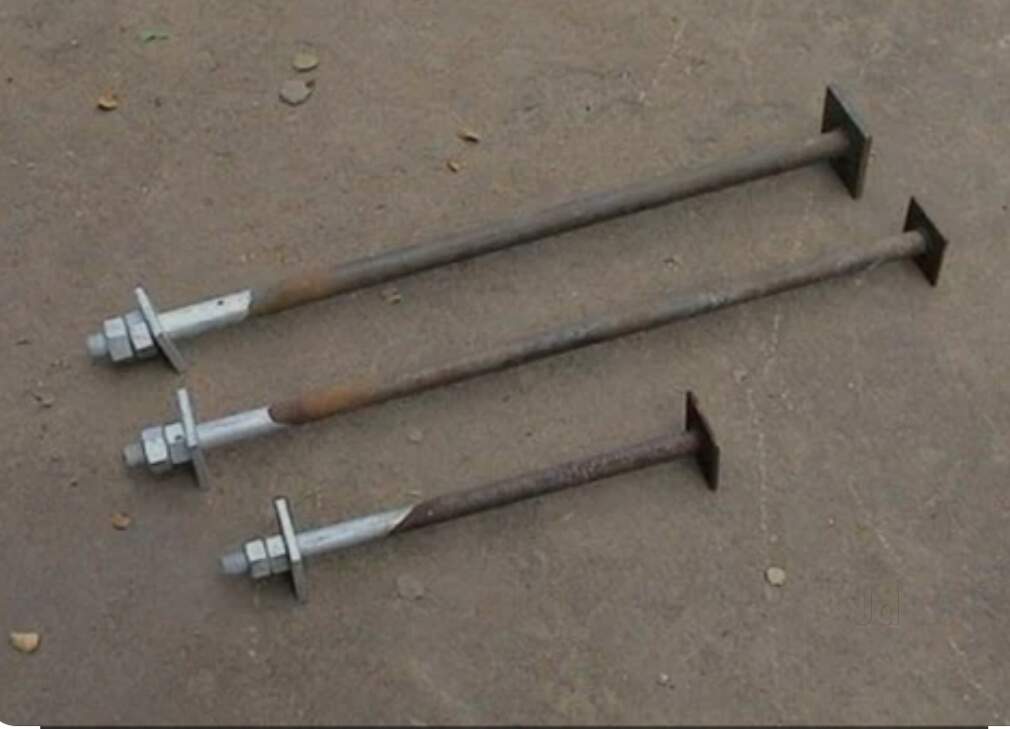

Plate rod anchors stabilize power infrastructure during floods and storms.
These anchors stabilize power infrastructure during storms and floods in Venezuela. The anchor consists of a steel rod with an attached plate or helix buried underground. When tension is applied, the plate resists movement by pressing against the surrounding soil. Plate rod anchors function in power transmission towers, utility poles, flood walls, and retaining walls. The rod anchors enhance the resilience of the critical infrastructure by providing anti-uplift and anti-sliding resistance. This is crucial in ensuring stability during storms and floods. Here are the functions of the plate rod anchors in power infrastructure stability.
- Structural stability—plate rod anchors embed deep into the ground and connect to utility poles, flood walls, or retaining systems through cables or rods. They are able to resist uplift forces from high winds and lateral forces from floodwaters or soil erosion. Plate rod anchors distribute the load, provide deep anchorage in unstable soils, and prevent foundation failure.
- Preventing tilting—strong winds can destabilize power transmission towers or poles. The anchors hold the structure in place by transferring loads to deeper and stable soil layers.
- Reducing soil erosion impacts—floods can wash away loose soils, weakening the foundation of grid infrastructure. The anchors extend deep enough to maintain grip even if the surface is eroded. The anchors remain anchored into subsoil layers and provide long-term anchorage in areas prone to flooding.
- Support during emergency grid recovery—rapid restoration of power lines is crucial after floods. Using plate rod anchors allows for quick installation using minimal machinery, enables temporary or permanent stabilization of emergency poles, and reduces downtime by securing rebuilt lines.
- Lower maintenance—plate rod anchors are from galvanized steel to resist corrosion and ensure a long service life.

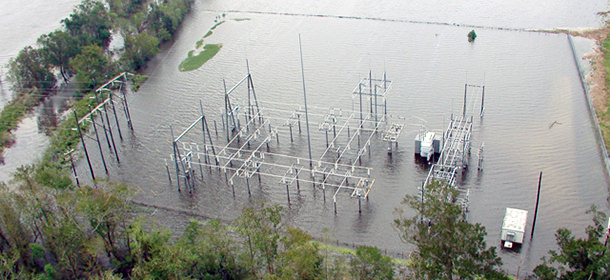

Impacts of floods and storms on Venezuela’s power infrastructure
Storms and floods pose significant threats to Venezuela’s power transmission and distribution infrastructure. These events can result in widespread blackouts, physical damage, and long recovery times in regions with outdated or poorly maintained grid components. To mitigate these impacts, Venezuela needs flood-resistant substation design, stronger anchorage systems, decentralized energy systems, and early warning systems. These impacts include:
- Power outages—floods and storms result in transmission lines collapsing, flooded substations, and short-circuited transformers, causing cascading failures.
- Structural damage to grid infrastructure—these weather events compromise components of the poles such as power poles, guy wires, and substations.
- Increased grid instability—frequent exposure to weather extremes weakens the reliability of the power grid.
- Delayed maintenance and emergency response—floods worsen existing logical and operational weaknesses. This results in blocked roads, limited spare parts and fuel shortages, and understaffed repair crews.
- Socioeconomic impacts—power disruptions from storms and floods ripple into daily life and economic activity. This impacts hospitals and clinics, businesses, and households.
